Compass Filter in MongoDB

1. Understanding MongoDB Compass Filters
2. Basic Filtering with Compass
3. Combining Filters for Complex Queries
4. Using Regular Expressions in Filters
5. Filtering Nested Documents
6. Conclusion
7. FAQ

MongoDB Compass is a powerful graphical user interface that allows developers to visualize and manipulate their MongoDB data easily. One of the most useful features of Compass is the ability to filter documents in a collection.

This article will explore various methods to use the Compass filter in MongoDB, providing you with practical examples and explanations. Whether you’re a seasoned developer or just starting out, understanding how to effectively apply filters in MongoDB Compass can significantly enhance your data management skills. Let’s dive into the various filtering techniques and see how you can optimize your MongoDB queries.

Understanding MongoDB Compass Filters

MongoDB Compass offers a user-friendly way to interact with your database. The filtering feature allows users to retrieve specific documents based on criteria they define. This is crucial for analyzing data, debugging, and ensuring that you are working with the right datasets. The filter bar in Compass uses MongoDB’s query language, which means you can write queries similar to those you would use in the MongoDB shell.

Using filters effectively can save you time and help you focus on the data that matters most. You can filter by field values, use comparison operators, and even combine multiple conditions. The flexibility of Compass makes it easy to visualize the results of your filters in real-time, which can lead to more informed decision-making.

If you make a syntactic mistake, Compass will indicate a query issue by turning the FILTER badge red.

Basic Filtering with Compass

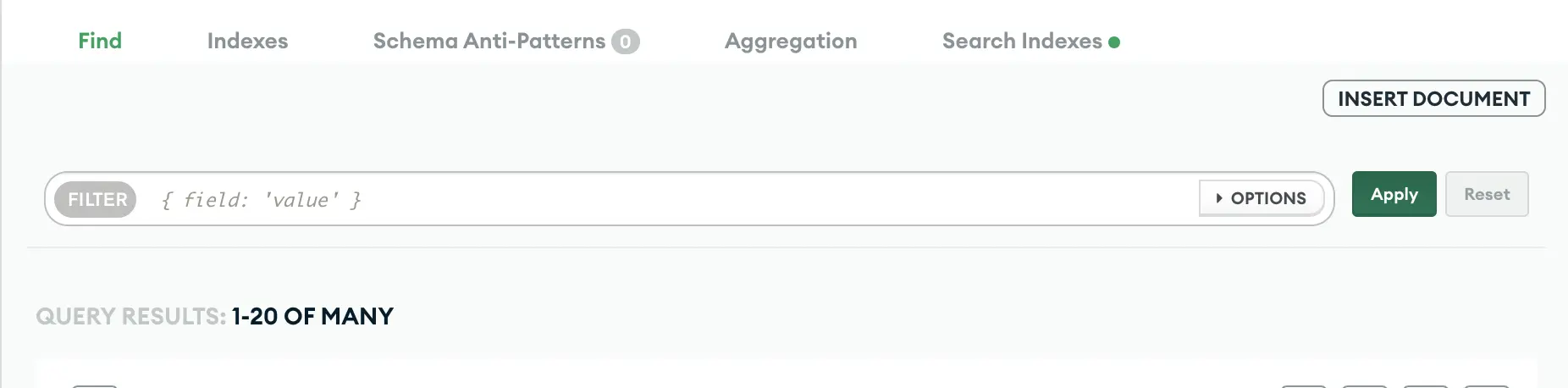

The simplest way to apply a filter in MongoDB Compass is through the filter bar located at the top of the documents view. You can start by selecting the collection you want to work with, then enter your filter criteria in the JSON format.

For example, if you want to find all documents where the field “status” is equal to “active”, you would enter the following filter:

{ "status": "active" }

Output:

[
  { "_id": "1", "name": "John Doe", "status": "active" },
  { "_id": "2", "name": "Jane Smith", "status": "active" }
]

This filter will return all documents in the selected collection that have a status of “active”. The ability to use JSON format makes it intuitive for developers familiar with JavaScript or JSON structures.

In addition to simple equality checks, you can also use operators like $gt, $lt, $ne, and others to refine your searches. For example, if you wanted to find documents where the “age” is greater than 30, you would use:

{ "age": { "$gt": 30 } }

Output:

[
  { "_id": "3", "name": "Alice Johnson", "age": 35 },
  { "_id": "4", "name": "Bob Brown", "age": 40 }
]

This method of filtering is straightforward and allows you to quickly hone in on the data you need.

Combining Filters for Complex Queries

To create more complex queries, MongoDB Compass allows you to combine multiple filters using the $and and $or operators. This is particularly useful when you need to filter documents based on multiple criteria.

For instance, if you want to find all documents where the “status” is “active” and the “age” is greater than 30, you would write:

{
  "$and": [
    { "status": "active" },
    { "age": { "$gt": 30 } }
  ]
}

Output:

[
  { "_id": "5", "name": "Charlie Green", "status": "active", "age": 32 },
  { "_id": "6", "name": "Diana White", "status": "active", "age": 45 }
]

The $and operator allows you to specify multiple conditions that must all be true for a document to be included in the results. Conversely, if you want to find documents where either condition is true, you can use the $or operator:

{
  "$or": [
    { "status": "active" },
    { "age": { "$lt": 25 } }
  ]
}

Output:

[
  { "_id": "7", "name": "Eve Black", "status": "inactive", "age": 22 },
  { "_id": "8", "name": "Frank Grey", "status": "active", "age": 29 }
]

Combining filters not only enhances the precision of your queries but also allows for more nuanced data analysis.

Using Regular Expressions in Filters

Another powerful feature of MongoDB Compass is its support for regular expressions in filters. This is particularly useful when you want to match strings that follow a specific pattern.

For example, if you want to find all documents where the “name” field starts with the letter “J”, you can use the following filter:

{ "name": { "$regex": "^J" } }

Output:

[
  { "_id": "1", "name": "John Doe" },
  { "_id": "2", "name": "Jane Smith" }
]

The ^ symbol in the regex indicates that the string should start with “J”. Regular expressions can be complex, but they offer a powerful way to search for patterns in your data.

You can also use the $options operator to make your regex case-insensitive:

{ "name": { "$regex": "^j", "$options": "i" } }

Output:

[
  { "_id": "1", "name": "john doe" },
  { "_id": "2", "name": "Jane Smith" }
]

Regular expressions can significantly expand your filtering capabilities, allowing for more sophisticated queries.

Filtering Nested Documents

MongoDB allows for complex data structures, including nested documents. Compass provides a way to filter these nested fields as well. If you have a collection where each document contains an array of items, you can filter based on the properties of these nested documents.

For instance, consider a document structure where each user has an array of “orders”. If you want to find users who have at least one order with a total greater than $100, you can use:

{ "orders.total": { "$gt": 100 } }

Output:

[
  { "_id": "9", "name": "Gina Blue", "orders": [{ "total": 150 }, { "total": 80 }] },
  { "_id": "10", "name": "Hank Red", "orders": [{ "total": 200 }] }
]

In this example, the filter directly targets the “total” field within the “orders” array. Compass effectively traverses these nested structures, making it easy for you to retrieve the data you need.

Filtering nested documents can become complex, especially with deeply nested structures. However, MongoDB Compass provides a straightforward interface to help you construct these queries without needing to write complex code.

Conclusion

Using filters in MongoDB Compass is an essential skill for any developer working with MongoDB. By mastering the various filtering methods discussed in this article, you can efficiently retrieve the exact data you need. Whether you are executing simple queries or complex nested document filters, Compass provides a user-friendly interface that makes the process intuitive. With practice, you’ll find that filtering data in MongoDB not only enhances your productivity but also empowers you to make more informed decisions based on your data analysis.

FAQ

1. What is MongoDB Compass?
   MongoDB Compass is a graphical user interface for MongoDB that allows users to visualize and manipulate their data easily.

2. How do I apply a filter in MongoDB Compass?
   You can apply a filter by entering your criteria in the filter bar at the top of the documents view in JSON format.

3. Can I combine multiple filters in MongoDB Compass?
   Yes, you can combine filters using the $and and $or operators to create more complex queries.

4. What are regular expressions, and how are they used in filters?
   Regular expressions are patterns used to match character combinations in strings. In MongoDB Compass, they can be used to filter documents based on string patterns.

5. How do I filter nested documents in MongoDB Compass?
   You can filter nested documents by specifying the path to the nested field in your filter criteria.
